Shelves and racking system roll forming machine
Equipment overview:
1.Equipment characteristics:A. Line speed: 0-10m/min. B.Suitable material: width: about 550mm, thickness:1-2.5mm C.Total capacity:about 22KW Shelves and racking system roll formingmachine 2 Line production process: Auto uncoiling---guiding----leveling��sending coil----punching bottom...
Share with:

Product Description

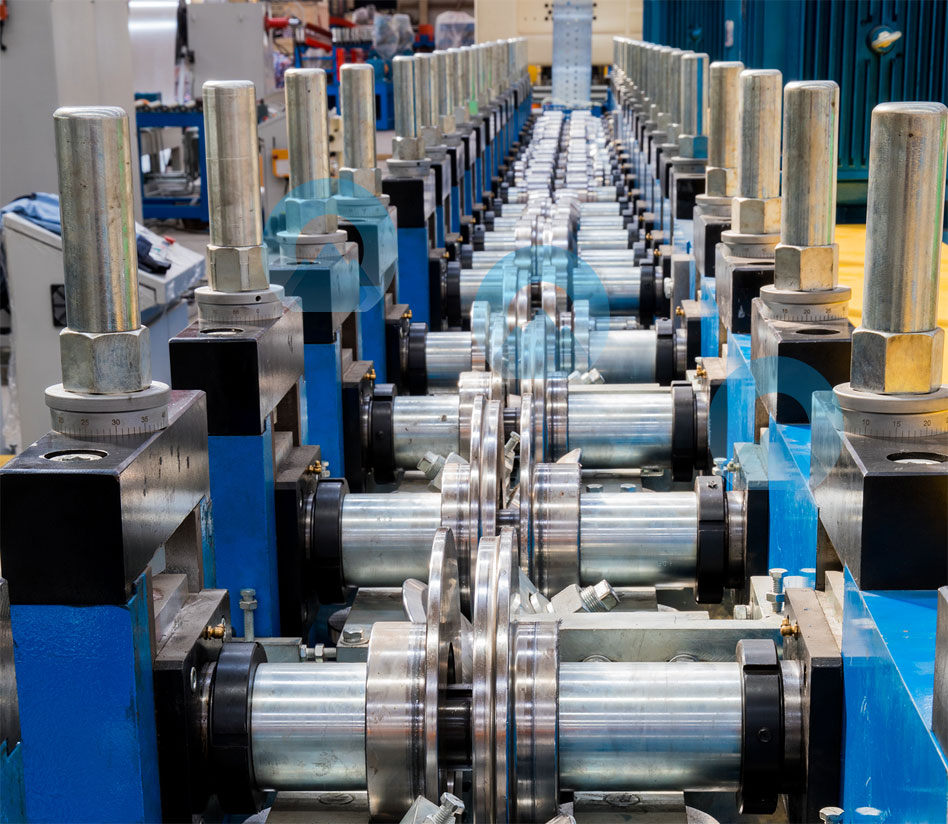

upright rack roll former
Upright Rack roll forming line


1 Standard、Heavy-duty rack roll forming line characteristics:
Standard、Heavy-duty rack roll forming line , it is widely used in storage、logistic、big supermarket and supermarket chain store, the straightness of the profile is good. Punching online, the precision of the punch is high, it is convenient for the rack installation.

2 Upright rack roll forming line working process
Automatic uncoil-Guiding-Leveling& Feeding-Continuous punching-Roll forming-Measure& Cutting-Automatic stacker


3: Upright rack roll forming line working process component
The upright rack roll forming line is composed by uncoiler、leveler、feeding device、mechanical press、roll former、cutter and automatic stacker. Whole line use Siemens PLC control, touching screen input the production data, with high automation, easy to operate and high production efficiency, the whole line speed can reach 40m/min.

A. Line speed: 0-40m/min.
B.Suitable material: width: about 550mm, thickness:1-2.5mm
C.Total capacity:about 22KW


                                      Upright Rack roll forming line

UPRIGHT

 upright rack roll former

Shelves and racking system roll forming machine

4: equipment components:
Upright rack roll forming line with automation, it needs one to two workers to operate, one machine can produce different dimension profiles, it can save the working field, it save the maximum cost for the user.

upright rack setions




Shelves and racking system
 The equipment is mainly making up of auto uncoiler, guide rack, leveling\sending part, continuous punching, roll forming, cutting-to-length, collection table, electrical control system etc.
Products have: shelf post, shelf beam, shelf brace, shelf laminate and other products.PLC controls the forming line.



Racking installation indication diagram

The product range: upright racking 、beam、slant support、shelve and other product.
The racking roll forming line use PLC control

Application project


Heavy duty rack using in logistic center


Heavy duty rack using in storage & logistic center

Shelves and racking system drawing

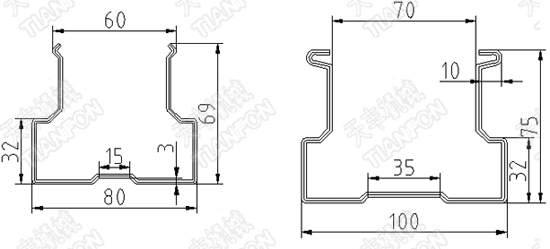

Profile for shelf pillar drawings

roll forming machine for goods shelf pillar

GOODS SHELF PILLAR

MODEL SECTION SIZE(mm)
A B C D E F H

I

51

68

100

65

80

98

16

II

71

88

120

65

80

98

16

III

50

108

140

48

66

80

12

IV

50

88

120

40

59

72

12

V

50

68

100

35

52

65

12

roll forming machine for goods shelf pillar

GOODS SHELF PILLAR

  MODEL SECTION SIZE(mm)
A B C D E F

I

25

 43

75

40

 38

53

II

30

48

80

45

 55

67.5

III

51

68

100

45

 55

67.5

IV

71

88

120

45

 55

67.5

V

51

68

100

50

 65

77.5

VI

71

88

120

50

 65

77.5

roll forming machine for goods shelf pillar
