Roll forming machine for roof panel, wall panel
Equipment overview:
The series roll forming machines are used to roll sheet metal(such as roof panel, wall panel) for steel structure building, steel structure project and containment system. Production Introduction The line is composed by loading car, uncolier, guiding feeding device, roll forming machine, cutt...
Share with:

Description
Descriptions of Roll Forming Machine for Roof Panel, Wall Panel:

1.This kind of cold roll forming machine is widely used for making various metal wall panels and roof panels for steel constructions, steel structure projects and containment systems etc.
2. This production line consists of feeding unit, uncoiler, feeding guide, roll forming machine, cutter, automatic stacker, hydraulic system and electric control system.
3. The line speed of this panel forming machine is 40m/min.

Components of Roll Forming Machine for Roof Panel, Wall Panel:

1) Un-coiler:
Electric un-coiler, with coil-car
Load capacity = Max.10Tons;
2) Roll forming machine:
About 18steps to form;
Material of Roller: 45# steel with chromizing on surface
Voltage:380V/50Hz; Main line speed: 40m/min;
3) Hydraulic cutter:
1) Stop to cut, Post cut,
2) Cutting tool material: Cr12, Heat treatment
4) PLC control system:
Using Mitsubishi PLC Control the quantity, length automatically, LCD screen; remote control available

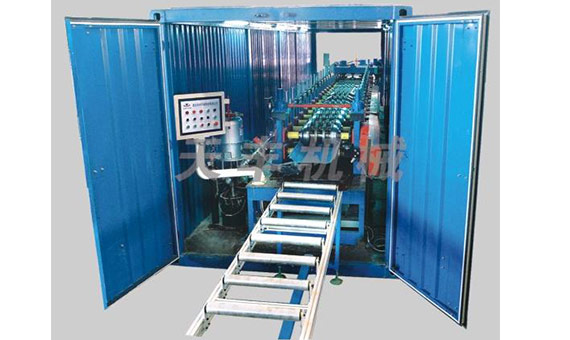

roll forming machine

TF roll forming machine for roof panel
roof panel roll forming machine


TF Protecting panel roll forming machines

TF 45/50 quick-change-raft roll forming machine (partial picture production)

TF Protecting panel roll forming machines(partial picture production)

MATERIAL
The line is composed by loading car, uncolier, guiding feeding device, roll forming machine, cutter, automatic stacker, hydraulic system, electric contral system.
The production speeds up to 60m/min, which can produce different profile through change quick-change cassette easily. One worker can operate the all line .PLC collective control the loading coil ,un-coiler ,pre-shears, forming machine, cutting ,stacker , it can be input several group data for machine produce one time and automatic produce. The whole line can be controlled by remote controller and covered by integral guard and safety light curtain .The machine is complying with European Unions safety standards and it has been approved by CE.
The roof panel production line speeds up to 40m/min, it is possible to produce two profiles according to change quick-change cassettes. The whole line can be controlled by remote controller, integral guard was covered on the machine, which complying with European Unions safety standards and has been passed CE.
Specification



Product picture

Roof and wall panel drawings

C8-1150

COVER WIDTH (mm)

 COIL WIDTH(mm)

 WAVE HEIGHT (mm)

WAVE LENGTH (mm)

USAGE

1250

1200
8
115
   ROOF AND WALL

MP20R-1100

COVER WIDTH (mm)

 COIL WIDTH(mm)

 WAVE HEIGHT (mm)

WAVE LENGTH (mm)

USAGE

1250

1145
17
137.5
   ROOF AND WALL

roll forming machine for wall and roof

COVER WIDTH (mm)

 COIL WIDTH(mm)

 WAVE HEIGHT (mm)

WAVE LENGTH (mm)

USAGE

1000

1200
38
333
   ROOF AND WALL

<="" p="" style="margin: 0px; padding: 0px; word-wrap: break-word; width: 482px; height: 99px;">

COVER WIDTH(mm)

 COIL WIDTH(mm)

 WAVE HEIGHT (mm)

WAVE LENGTH (mm)

USAGE

840

1000
15
140
   ROOF AND WALL

roll forming machine for wall and roof

COVER WIDTH (mm)

 COIL WIDTH(mm)

 WAVE HEIGHT (mm)

WAVE LENGTH (mm)

USAGE

600

914
92
300
 ROOF

roll forming machine for wall and roof

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGHT (mm)

 WAVE LENGTH (mm)

USAGE

760

1000
75
380
  ROOF

roll forming machine for wall and roof

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGHT(mm)

 WAVE LENGTH (mm)

USAGE

876

1200
36
146
  ROOF AND WALL

roll forming machine for wall and roof

COVER WIDTH (mm)

 COIL WIDTH(mm)

WAVE HEIGHT (mm)

 WAVE LENGTH(mm)

USAGE

1050

1200
35
350
  ROOF AND WALL

IBR SHEET

COVER WIDTH (mm)

 COIL WIDTH(mm)

 WAVE HEIGHT (mm)

WAVE LENGTH (mm)

USAGE

1050

1200
28
176
      ROOF AND WALL

roll forming machine for wall and roof

COVER WIDTH (mm)

 COIL WIDTH(mm)

 WAVE HEIGHT (mm)

 WAVE LENGTH(mm)

USAGE

1000

1200
25
143
ROOF AND WALL

roll forming machine for wall and roof

COVER WIDTH (mm)

 COIL WIDTH(mm)

 WAVE HEIGHT (mm)

 WAVE LENGTH(mm)

USAGE

1048

1200
15
85
      ROOF AND WALL
