TFshelf back layer roll forming line
Equipment overview:
TF600X shelve back layer roll forming line is composed by uncoiler、servo feeding device、mechanical press、cantilever roll former、bending& cutting integrated device、centralized lubrication system、hydraulic system and electric control system, you can set& produce different punching portfolio , final pro...
Share with:

Product Description

TF600X shelve back layer  roll forming line is composed by uncoiler、servo feeding device、mechanical press、cantilever roll former、bending& cutting integrated device、centralized lubrication system、hydraulic system and electric control system, you can set& produce different punching portfolio , final profile length take 1mm difference to increase, it can meet your precision requirement, the structure is smart and the machine is stable.

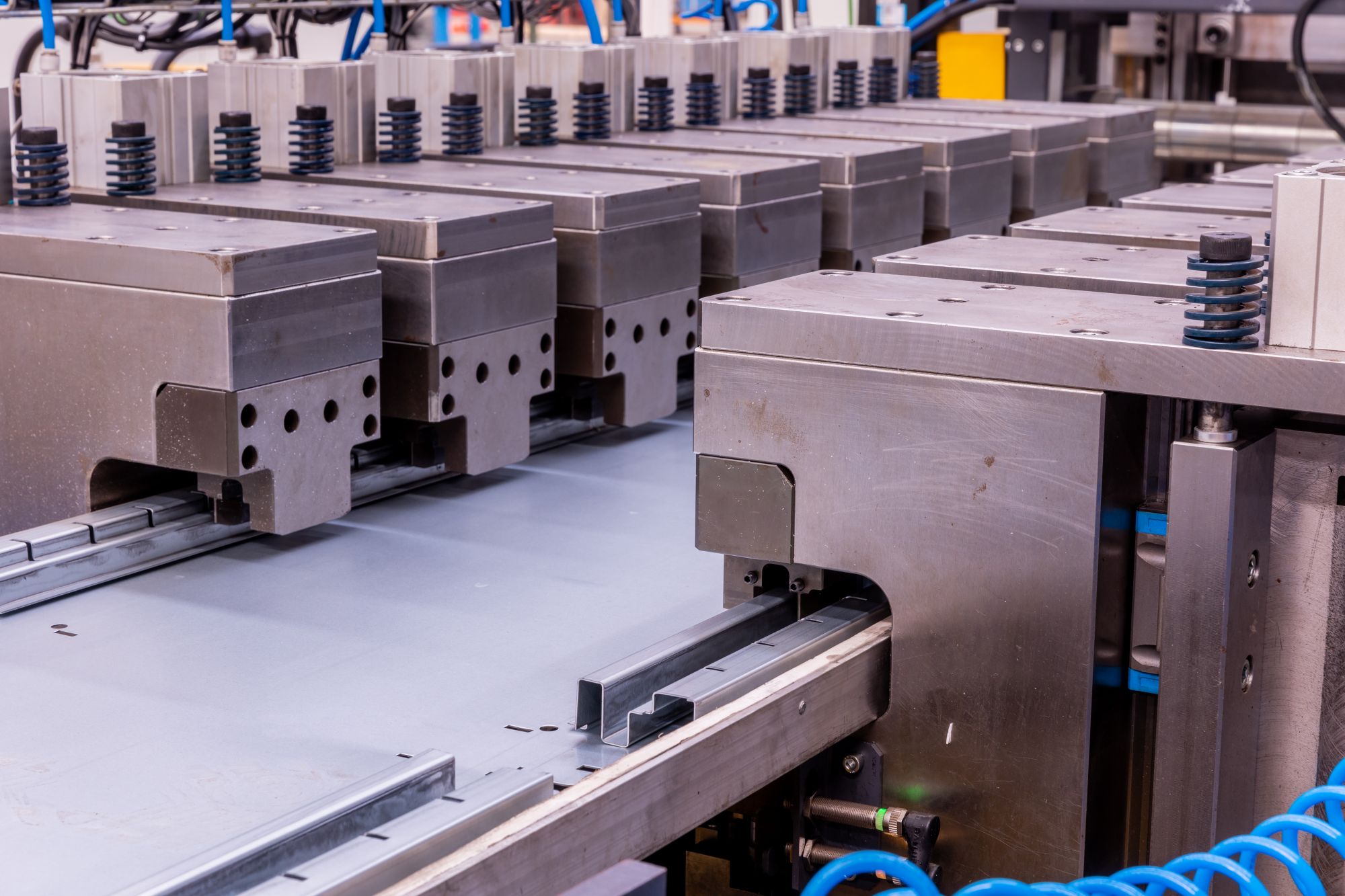

shelf-and-back-layer-roll former
                               TF  shelf  and back layer roll forming line


shelf-and-back-layer-



Product: Panel Mount Shelves ,Shelf column, Panel Shelf,Shelf crossbeam, Shelf stay rod, Shelf plywood etc.

Equipment capacity:
1, Equipment production capacity: width≤400mm, thickness of steel material: 1-2.5mm
2, Production speed: 0-40m/min
3, Total power: about 21.5kw




shelf-and-back-layer  shelf-and-back-layer-
shelf-and-back-layer-
