Steel roof tile roll forming machine
Equipment overview:
Roll-Forming M/C:
The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The roller surface has been fine finished; make sure the profile is smooth.
About -13 steps to form; Material of Roller: 45# steel, Chroming and polishing on the surface.
The machine base adopts welded steel plate structure; Chain and gear move the line, motor drives.
Share with:

Description

MATERIAL:
(1) Coil Width: 1000 mm~1250mm
(2) Suitable Coil Thickness: 0.3mm - 0.6mm
(3) Suitable Raw Materials: Pre-painted Coil;
(4) Yield bearing stress: 235MPa


MACHINE COMPONENTS:
(1) Hydraulic Un-coiler: 1 set
(2) Roll-Forming M/C: 1 set
(3) Hydraulic Pressing Die/Cutting M/C: 1 set
(4) PLC Control System: 1 set
(5) Product Rack (un-powered): 1 set

step tile roll forming line
                               TF   step tile roll forming line
step tile roll forming line
                      TF  glazed tile roll forming line
step tile roll forming line     step tile roll forming line


step tile roll forming line       step tile roll forming line
Specification
Product picture

Roll forming machine for Steel roof tile TF20-220-1100

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGH  (mm)

WAVE LENGTH (mm)

USAGE

1100

1200
20
220
Steel roof tile
Roll forming machine for Steel roof tile TF22-186.7-935

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGH  (mm)

WAVE LENGTH (mm)

USAGE

935

1000
22
186.7
Steel roof tile

Roll forming machine  for Steel roof tile TF24-185-1110

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGHT(mm)

WAVE LENGTH (mm)

USAGE

1100

1250
24
185
Steel roof tile
Roll forming machine for Steel roof tile TF25-183-1100

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGHT(mm)

WAVE LENGTH (mm)

USAGE

1100

1250
25
183.33
Steel roof tile

Roll forming machine for glazed steel tile TF27-186.7-1120

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGHT(mm)

WAVE LENGTH (mm)

USAGE

1120

1250
27
186.7
GLAZED STEEL TILE

Roll forming machine for glazed steel tileTF27-212-1060

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGH  (mm)

WAVE LENGTH (mm)

USAGE

1060

1250
27
212
GLAZED STEEL TILE

Roll forming machine for glazed steel tile TF28-207-1035

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGH  (mm)

WAVE LENGTH (mm)

USAGE

1035

1200
28
207
GLAZED STEEL TILE

Roll forming machine for glazed steel tile TF30-185-1110

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGH  (mm)

WAVE LENGTH (mm)

USAGE

1110

1250
30
185
GLAZED STEEL TILE

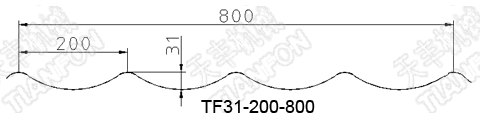

Roll forming machine for glazed steel tileTF31-200-800

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGH  (mm)

WAVE LENGTH (mm)

USAGE

800

915
31
200
GLAZED STEEL TILE

Roll forming machine for glazed steel tile TF40-257-1028

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGH  (mm)

WAVE LENGTH (mm)

USAGE

1018

1200
40
205
GLAZED STEEL TILE

Roll forming machine for glazed steel tile TF45-253-760

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGH  (mm)

WAVE LENGTH (mm)

USAGE

760

915
45
253
GLAZED STEEL TILE

Roll forming machine for glazed steel tile TF59-228-912

COVER WIDTH (mm)

COIL WIDTH(mm)

WAVE HEIGH  (mm)

WAVE LENGTH (mm)

USAGE

912

1250
59
228
GLAZED STEEL TILE
